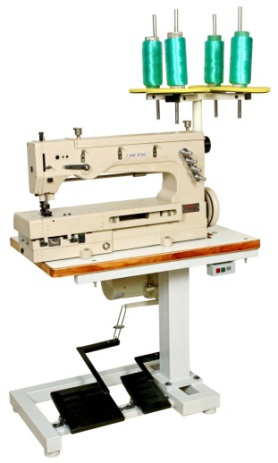

AS 1000 LA
Technical Detail
SINGLE NEEDLE, DOUBLE THREAD, LONG ARM CHAIN STITCH SEWING MACHINE WITH LOWER FEED & ALTERNATING UPPER FEED. FOR BAFFEL ATTACHMENT.
Application
Specially Designed For Baffle Sewing Of Container Bags. Especially Suitable To Sew Straight Lines Into Wide PP Fabric Without Folding The Fabric On The Right Side (Filler Cord From Top & Below Can Be Stitched For Sealing Needle Punctures).
Stitching Sample
Technical Parameters
| Model | AS 1000 LA |
| MAX SPEED (R.P.M.) APPROX | 2000 |
| WORKING SPEED (R.P.M.) APPROX | 1800 Depends On Sewing Material |
| STITCH RANGE (100 MM) | 11 – 16 *Adjustable |
| DISTANCE BETWEEN TWO NEEDLES | 8 mm |
| SEWING CAPACITY (MM) | Up to 10 mm |
| NEEDLE SIZE | DR X 2 #26 (Groz-Beckert) |
| NO. OF NEEDLE | One |
| NO. OF THREAD | Two |
| STITCHING THREAD TYPE | Multi Filament, Fabricated Yarn |
| LUBRICATION | Fully Automatic |
| MOTOR | 1 H.P.,1 OR 3 Phase 1425-2850 RPM |
